Activity 7: Large clusters and path filtering

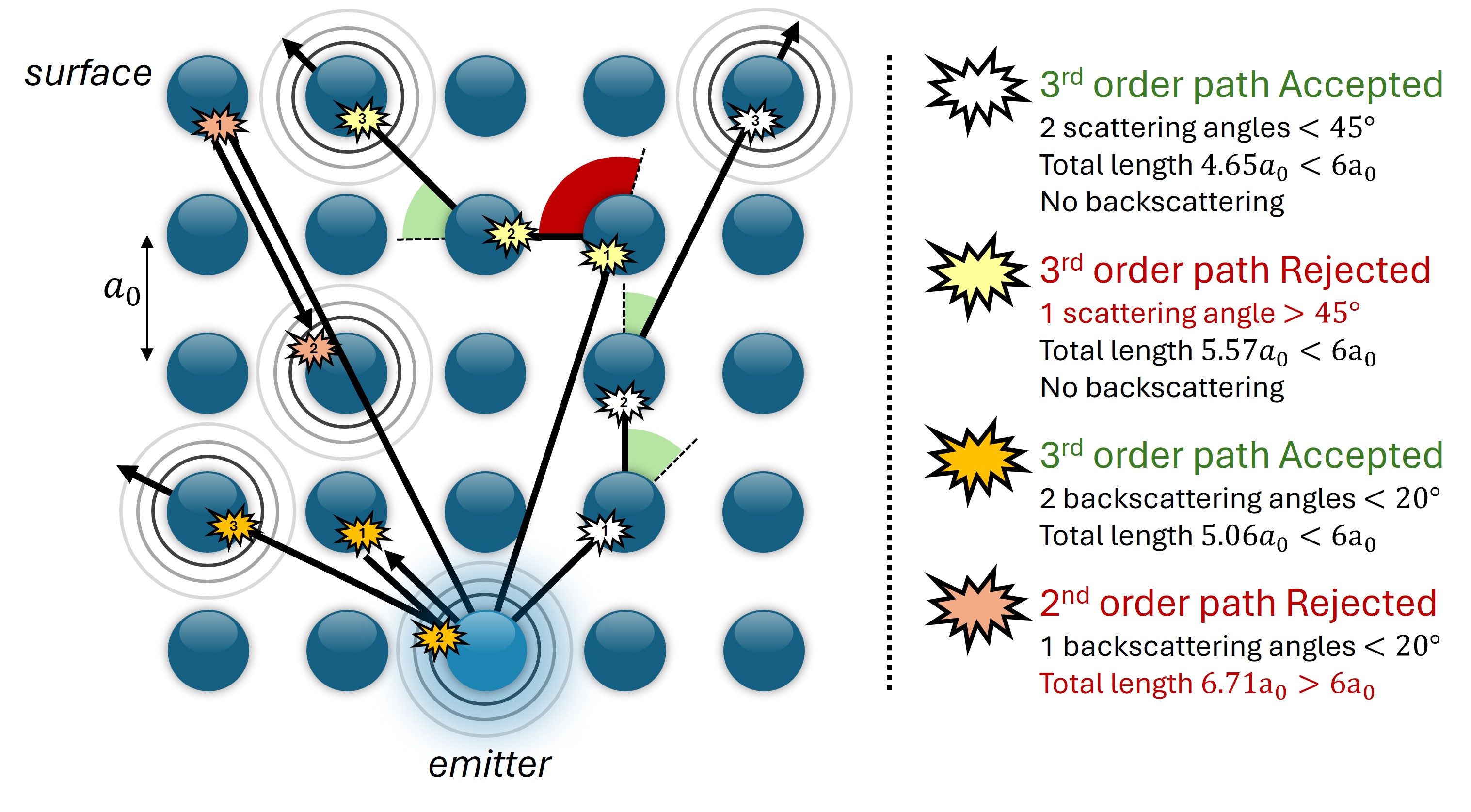

Fig. 16 Some examples of scattering paths with forward_scattering, backward_scattering and distance filters selected. The accepted forward angle is 45°, the accepted backscattering angle is 20° and the threshold distance is \(6a_0\) where \(a_0\) is the lattice parameter. Note that the yellow path is rejected but if the off_cone_events option is set to a value > 1, then it could have been accepted.
